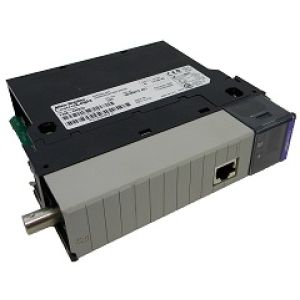

ControlLogix Enet/IP Comms Module Rockwell 1756-CNB
- Mã sản phẩm: 1756-CNB
- Giá: Liên hệ
- Lượt xem: 2146
- Allen-Bradley 1756-CNB Mô-đun cầu nối ControlLogix ControlLogix, (1) đầu nối ControlNet BNC, (1) NAP RJ-45 8 chân có đầu nối tấm chắn; Tốc độ giao tiếp: 5 Mbps, Sê-ri E
- Thông tin sản phẩm
Hãng sản xuất : Rockwell
Thông số kỹ thuật :
Electrical
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for other bus systems | Yes |
| Redundancy | No |
| IO link master | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Transmission rate | 5000 kBps |
| Power dissipation | 5.1 W |
| Thermal dissipation | 17.4 BTU/h |
| ControlNet port | 1 ControlNet BNC |
| Enclosure type rating | None (open-style) |
| Number of nodes, max | 99 nodes |
| Current draw | 970 mA @ 5.1V DC, 1.7 mA @ 24V DC |
| ControlNet cable | 1786-RG6 quad shield RG6 coaxial cable |
| Wiring category | 1 - on ControlNet ports, 3 - on NAP ports |
| Connections supported, max | 64 maximum |
| Isolation voltage | Standard: 30V (continuous), basic insulation type, ControlNet network to, backplane, Redundant: 30V (continuous), basic insulation type, ControlNet A/B to, backplane, and ControlNet A to ControlNet B, USB to backplane and USB to ControlNet, No isolation b |
| Supporting protocol for LON | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for SUCONET | No |
| With potential separation | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Slot width | 1 |
| Logix communication connections range | 40...48 |
| NAP cable | 1786-CP |
| NAP port | 1 NAP RJ45 |
Environmental
| Surrounding air temperature, max | 60 °C |
| Storage temperature | -40 to 85 °C |
| Emissions | CISPR 11: Class A |
| Vibration | 2 G @ 10...500 Hz |
| ESD immunity | 6 kV contact discharges, 8 kV air discharges |
| EFT/B immunity | ±3 kV at 5 kHz on ControlNet ports |
| Relative humidity | 5...95% noncondensing |
| Shock | Operating: 30 G, Non operating: 50 G |
| Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Surge transient immunity | ±2 kV line-earth (CM) on ControlNet ports |
| Operating temperature | 0 to 60 °C |
| Radiated RF immunity | 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz |
Certification
| North American temperature code | T4A |
| IEC temperature code | T4 |
Mechanical
| Weight, approx | 0.26 kg |
| Module location | Chassis based, any slot |
