PLC Siemens 6ES7134-6HD00-0BA1

Chi tiết sản phẩm

PLC Siemens 6ES7134-6HD00-0BA1
Mã sản phẩm: 6ES7134-6HD00-0BA1
Giá: Liên hệ
Lượt xem: 1242

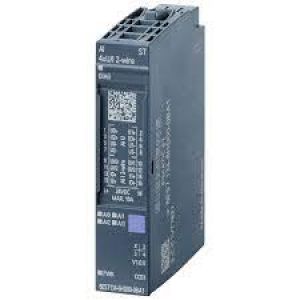

SIMATIC ET 200SP, ANALOG INPUT MODULE, AI 4XU/I 2-WIRE STANDARD, FITS TO BU-TYPE A0, A1, COLOR CODE CC03, MODULE DIAGNOSIS, 16BIT, +/-0,3%

Liên hệ

Thông tin sản phẩm

Hãng sản xuất : Siemens

Thông số kỹ thuật :

Digital outputs :
Type of digital output Source output : (PNP, current-sourcing)
Number of digital outputs : 8
Current-sourcing : Yes
Short-circuit protection : Yes
● Response threshold, typ. : 1 A
Limitation of inductive shutdown voltage to Typ. L+ (-50 V)
Controlling a digital input : Yes
Switching capacity of the outputs
● with resistive load, max. : 0.5 A
● on lamp load, max. : 5 W
Load resistance range
● lower limit : 48 Ω
● upper limit : 12 kΩ
Output voltage
● for signal "1", min. L+ (-0.8 V)
Output current
● for signal "1" rated value : 0.5 A
● for signal "1" permissible range, max : 0.5 A
● for signal "0" residual current, max. : 0.1 mA
Output delay with resistive load
● "0" to "1", max. 50 µs; at rated load
● "1" to "0", max. 100 µs; at rated load
Parallel switching of two outputs
● for uprating : No
● for redundant control of a load : Yes
Switching frequency
● with resistive load, max. : 100 Hz
● with inductive load, max. : 2 Hz
● on lamp load, max. : 10 Hz
Total current of the outputs
● Current per channel, max. : 0.5 A
● Current per module, max. : 4 A
