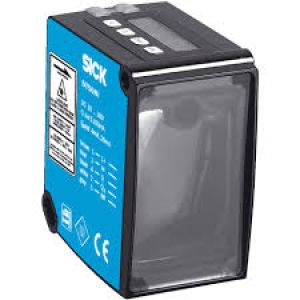

Cảm biến khoảng cách Sick DT50-P1113
- Mã sản phẩm: DT50-P1113
- Giá: Liên hệ
- Lượt xem: 1682
- Thông tin sản phẩm
Hãng sản xuất : Sick
Thông số kỹ thuật :
Supply voltage Vs | DC 10 V ... 30 V 1) 2) |
Ripple | ≤ 5 Vpp 3) |
Power consumption | ≤ 2.1 W 4) |
Initialization time | ≤ 250 ms |
Warm-up time | ≤ 15 min |
Housing material | Metal (zinc diecast) |
Window material | Plastic (PMMA) |
Connection type | Male connector, M12, 5-pin |
Indication | LC display, 2 x LED |
Weight | 200 g |
Dimensions (W x H x D) | 36.1 mm x 62.7 mm x 57.7 mm |
Enclosure rating | IP65 |
Protection class | III |
Measuring range |
200 mm ... 10,000 mm, 90 % remission 200 mm ... 6,500 mm, 18 % remission 200 mm ... 4,000 mm, 6 % remission |
Target | Natural objects |
Resolution | 1 mm |
Repeatability | ≥ 2.5 mm 1) 2) 3) |
Accuracy | ± 10 mm 4) |
Response time | 20 ms ... 30 ms, 20 ms / 30 ms 3) 5) |
Output time | ≥ 4 ms 6) |
Light source | Laser, red visible red light |
Laser class | 2 (IEC 60825-1:2014, EN 60825-1:2014) 7) |
Typ. light spot size (distance) | 15 mm x 15 mm (10 m) |
Additional function | Set moving average: fast/slow, switching mode: distance to object (DtO), teach-in, scaling and inversion of digital output, set hysteresis, teach-in, scaling and inversion of analog output, Multifunctional input: laser off / external teach / deactivated, switch-off display, reset to factory default, lock user interface |
Average laser service life (at 25 °C) | 100,000 h |
